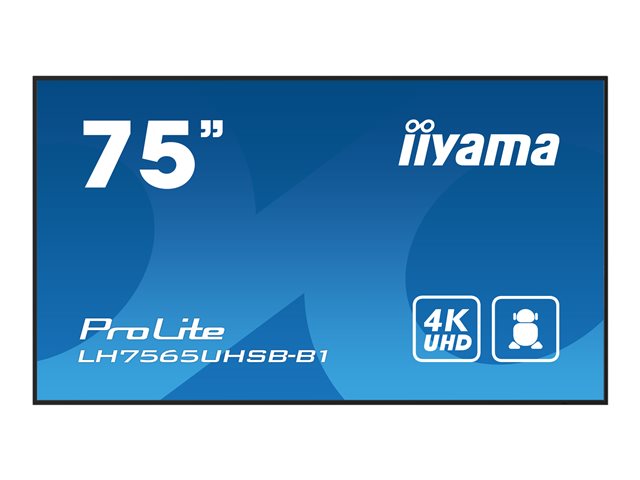

iiyama ProLite LH7565UHSB-B1 75" Class (74.5" viewable) LED-backlit LCD display - 4K - for digital signage
Description
iiyama ProLite LH7565UHSB-B1 - 75" Diagonal Class (74.5" viewable) LED-backlit LCD display - digital signage - Android - 4K UHD (2160p) 3840 x 2160 - black
Basic Specifications
- Manufacturer's Part Number
- LH7565UHSB-B1
- EAN
- 4948570123599
- Product Type
- LED-backlit LCD flat panel display
- Energy Class
- Class E
- Weight
- 29 kg
- Product Description
- iiyama ProLite LH7565UHSB-B1 75" Class (74.5" viewable) LED-backlit LCD display - 4K - for digital signage
- Model
- iiyama ProLite LH7565UHSB-B1
- Colour
- Black
- Manufacturer Warranty
- 3-year warranty
- Dimensions (WxDxH)
- 167.95 cm x 5.5 cm x 95.85 cm
- HDMI Ports Qty
- 2 ports
- LCD Backlight Technology
- LED backlight
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Power Consumption Operational
- 107 Watt
- Display Format
- 4K UHD (2160p)
- USB
- 2 ports
- Voltage
- AC 100-240 V (50/60 Hz)
- Commercial Features
- FailOver
- Diagonal Class
- 75"
- Included Accessories
- Remote control, stickers for screw holes, adhesive cable clips, AC switch cover
- Power Consumption Stand by
- 0.5 Watt
- Connectivity
- LAN, Wi-Fi
- Video Interface
- HDMI
- Commercial Use
- Digital signage
- Platform
- Android
- Diagonal Size
- 74.5"
- Speaker System
- 2 speakers
- PC Interface
- DisplayPort
- Technology
- IPS
- TV Tuner
- No tuner
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
- Smart
- No
- Display Resolution
- 4K Ultra HD (2160p)
- Storage Capacity
- 32 GB
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/1962589
General
- Product Type
- LED-backlit LCD flat panel display
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/1962589
- Energy Class
- Class E
- Power Consumption Operational
- 107 Watt
- Power Consumption SDR (On mode)
- 107 kWh/1000h
- Diagonal Class
- 75"
- Diagonal Size
- 74.5"
- Commercial Use
- Yes - digital signage
- Platform
- Android
- Operating System
- Android OS 11
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Video Interface
- HDMI
- HDMI Ports Qty
- 2 ports
- PC Interface
- DisplayPort
- Modes
- Portrait mode, landscape mode
- Design
- Fanless Design, Thin Bezel Design
- Width
- 167.95 cm
- Depth
- 5.5 cm
- Height
- 95.85 cm
- Weight
- 29 kg
- Enclosure Colour
- Black
Power
- Power Device
- Power supply
- Input Voltage
- AC 100-240 V (50/60 Hz)
- Power Consumption Stand by
- 0.5 Watt
- Power Consumption (Off Mode)
- 0.3 Watt
Dimensions & Weight (Shipping)
- Width (Shipping)
- 188.3 cm
- Depth (Shipping)
- 18.6 cm
- Height (Shipping)
- 114 cm
- Weight (Shipping)
- 40.5 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
Miscellaneous
- Included Accessories
- Stickers for screw holes, adhesive cable clips, AC switch cover
- Cables Included
- HDMI cable ¦ RS-232C cable
- Compliant Standards
- TUV Bauart, DDC-2B, RoHS, ERP, WEEE, REACH, UKCA
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Network & Internet Multimedia
- Connectivity
- LAN, Wi-Fi
- Wi-Fi Protocol
- 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
- Connect & Share
- EShare
Stands & Mounts
- Flat Panel Mount Interface
- 600 x 400 mm
- VESA Compatibility
- Yes
Connections
- Connector Type
- 2 x HDMI input ¦ DisplayPort input ¦ RS-232C input ¦ LAN ¦ 2 x USB 2.0 ¦ Audio line-out ¦ RS-232C input
Remote Control
- Type
- Remote control
- Battery Included
- Yes
Audio System
- Speaker System
- 2 speakers
- Output Power / Total
- 20 Watt
- Speakers
- 2 x speaker - 10 Watt
Media Player
- USB Port
- Yes
- USB Ports Qty
- 2
- Configuration
- ARM Cortex-A73 Quad-Core + ARM Cortex-A53 Quad-Core - 4 GB - 32 GB - Mali G52 MP8
Display
- LCD Display Technology
- IPS
- Pixel Pitch
- 0.429 mm
- Colour Support
- 1070000000 colours
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
- LCD Backlight Technology
- LED backlight
- Coating
- 1% haze
- Image Contrast Ratio
- 1200:1
- Brightness
- 800 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Response Time
- 8 ms
- Display Menu Language
- English, German, French, Spanish, Italian, Chinese, Russian, Japanese, Czech, Dutch, Polish, Swedish, Finnish, Danish, Norwegian
- Commercial Features
- FailOver
- Operation Hours / Days
- 24 / 7
- Features
- Low Blue Light Technology, 24/7 operation time, Smart Display Module slot, iiSignage²
