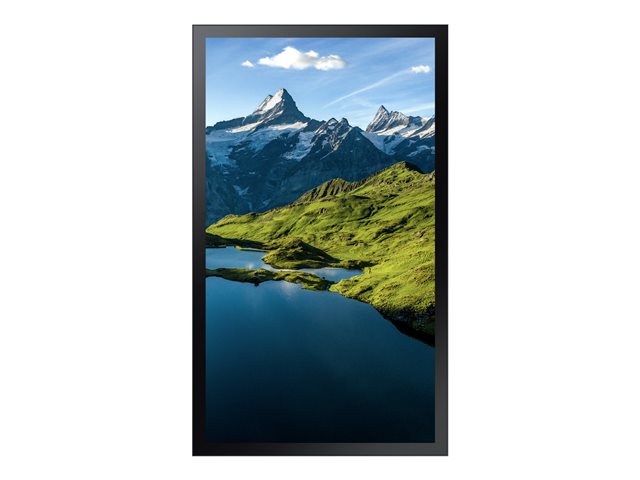

Samsung OH75A OHA Series - 75" Class (74.5" viewable) LED-backlit LCD display - 4K - outdoor - for digital signage
Description
Samsung OH75A - 75" Diagonal Class (74.5" viewable) - OHA Series LED-backlit LCD display - digital signage outdoor - full sun - Tizen OS - 4K UHD (2160p) 3840 x 2160 - Direct LED - black
Basic Specifications
- Manufacturer's Part Number
- LH75OHAEBGBXEN
- EAN
- 8806092748798
- Product Type
- LED-backlit LCD flat panel display - outdoor
- Weight
- 134 kg
- Product Description
- Samsung OH75A OHA Series - 75" Class (74.5" viewable) LED-backlit LCD display - 4K - outdoor - for digital signage
- Model
- Samsung OH75A
- Colour
- Black
- Manufacturer Warranty
- 3-year warranty
- LCD Backlight Technology
- Direct LED
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Power Consumption Operational
- 471 Watt
- Display Format
- 4K UHD (2160p)
- USB
- Yes
- Commercial Features
- Visible with Polarised Sunglasses, MagicInfo S7 Player
- Dimensions (WxDxH) - without stand
- 177.48 cm x 13 cm x 105.34 cm
- Diagonal Class
- 75"
- Included Accessories
- Remote control
- Connectivity
- LAN
- Video Interface
- HDMI
- Commercial Use
- Digital signage
- Platform
- Tizen OS
- Diagonal Size
- 74.5"
- PC Interface
- DisplayPort
- TV Tuner
- No tuner
- Smart
- No
- Display Resolution
- 4K Ultra HD (2160p)
- Picture Enhancements
- 72% Colour Gamut
- Storage Capacity
- 8 GB (system 3.88 GB + available 4.12 GB)
- Sun Exposure
- Full sun
General
- Product Type
- LED-backlit LCD flat panel display
- Power Consumption Operational
- 471 Watt
- Power Consumption SDR (On mode)
- 471 kWh/1000h
- Diagonal Class
- 75"
- Diagonal Size
- 74.5"
- Commercial Use
- Yes - digital signage
- Series
- OHA Series
- Outdoor
- Yes
- Sun Exposure
- Full sun
- Platform
- Tizen OS
- Operating System
- Tizen OS 5.0
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Video Interface
- HDMI
- PC Interface
- DisplayPort
- Picture Enhancements
- 72% Colour Gamut
- Protection
- Dustproof, weatherproof, magic protection glass
- Dimensions
- Without stand
- Width
- 177.48 cm
- Depth
- 13 cm
- Height
- 105.34 cm
- Weight
- 134 kg
- Enclosure Colour
- Black
Power
- Power Device
- Power supply
- Power Consumption Sleep
- 0.5 Watt
Dimensions & Weight (Shipping)
- Width (Shipping)
- 193.2 cm
- Depth (Shipping)
- 36.7 cm
- Height (Shipping)
- 125.1 cm
- Weight (Shipping)
- 150 kg
Environmental Parameters
- Min Operating Temperature
- -30 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 10 - 80% (non-condensing)
Miscellaneous
- Compliant Standards
- UL, CB, IEC 60950-1, EN 60950-1, IK10, EMC Class A, HDCP 2.2, IP56
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Network & Internet Multimedia
- Connectivity
- LAN
Stands & Mounts
- Flat Panel Mount Interface
- 260 x 1118.4, 870 x 1118.4
- VESA Compatibility
- Yes
Connections
- Connector Type
- 2 x HDMI input ¦ DisplayPort input ¦ USB 2.0 ¦ Audio line-out ¦ RS-232 input ¦ RS-232 output ¦ LAN input ¦ LAN output
Remote Control
- Type
- Remote control
- Battery Included
- Yes
Media Player
- Supported Video Formats
- H.264, HEVC, VP9, VP8, AVS+, SHVC
- Supported Audio Formats
- AC3
- USB Port
- Yes
- USB Ports Qty
- 1
- Configuration
- ARM Cortex-A72 Quad-Core ( 1.7 GHz ) - 2.5 GB LPDDR4 - 8 GB (system 3.88 GB + available 4.12 GB)
Display
- Pixel Pitch
- 0.43 mm
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- LCD Backlight Technology
- Direct LED
- Coating
- 1% haze
- Image Contrast Ratio
- 1200:1
- Brightness
- 3500 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Response Time
- 14 ms
- Commercial Features
- Visible with Polarised Sunglasses, MagicInfo S7 Player
- Operation Hours / Days
- 24 / 7
- Features
- Pivot, SSSP 7.0, 1.07 billion colours
