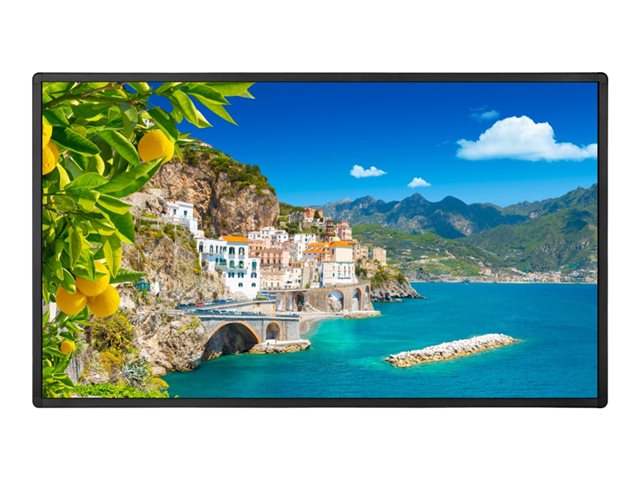

Vestel XD86B/4H XD Series - 86" LED-backlit LCD display - 4K - for digital signage
Description
Vestel XD86B/4H - 86" Diagonal Class XD Series LED-backlit LCD display - digital signage - 4K UHD (2160p) 3840 x 2160 - Edge LED
Basic Specifications
- Manufacturer's Part Number
- XD86B-4H
- Product Type
- LED-backlit LCD flat panel display
- Weight
- 61.95 kg
- Product Description
- Vestel XD86B/4H XD Series - 86" LED-backlit LCD display - 4K - for digital signage
- Model
- Vestel XD86B/4H
- Dimensions (WxDxH)
- 192.8 cm x 8 cm x 109.9 cm
- HDMI Ports Qty
- 4 ports
- LCD Backlight Technology
- LED backlight - Edge LED
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Power Consumption Operational
- 280 Watt
- Display Format
- 4K UHD (2160p)
- USB
- 3 ports
- Voltage
- AC 110-240 V (50/60 Hz)
- Commercial Features
- Real-Time Clock (RTC), Open Content Management Support, control panel lock, USB auto-play, FailOver, Auto-Launch
- Diagonal Class
- 86"
- Included Accessories
- Remote control, mounting kit
- Connectivity
- Wi-Fi (optional), LAN
- Video Interface
- HDMI
- Commercial Use
- Digital signage
- Speaker System
- 2 speakers
- PC Interface
- VGA (HD-15), DisplayPort
- Technology
- IPS
- TV Tuner
- No tuner
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
- Smart
- No
- Display Resolution
- 4K Ultra HD (2160p)
General
- Product Type
- LED-backlit LCD flat panel display
- Power Consumption (Max)
- 400 Watt
- Power Consumption Operational
- 280 Watt
- Diagonal Class
- 86"
- Commercial Use
- Yes - digital signage
- Series
- XD Series
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Video Interface
- HDMI
- HDMI Ports Qty
- 4 ports
- PC Interface
- VGA (HD-15), DisplayPort
- Modes
- Landscape mode
- Design
- Subtle Design
- Width
- 192.8 cm
- Depth
- 8 cm
- Height
- 109.9 cm
- Weight
- 61.95 kg
Power
- Power Device
- Power supply
- Input Voltage
- AC 110-240 V (50/60 Hz)
- Power Consumption (Off Mode)
- 0.5 Watt
Dimensions & Weight (Shipping)
- Width (Shipping)
- 216.3 cm
- Depth (Shipping)
- 38 cm
- Height (Shipping)
- 140.5 cm
- Weight (Shipping)
- 83.8 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90%
Miscellaneous
- Included Accessories
- Mounting kit
- Cables Included
- IR extender cable
- Compliant Standards
- EMC, CEC, DisplayPort 1.2a, HDCP 2.2, Safety certification
Network & Internet Multimedia
- Connectivity
- Wi-Fi (optional), LAN
Stands & Mounts
- Flat Panel Mount Interface
- 600 x 400 mm
- VESA Compatibility
- Yes
Connections
- Connector Type
- 4 x HDMI input ¦ HDMI output ¦ DisplayPort input ¦ DisplayPort output ¦ 2 x USB 2.0 ¦ USB 2.0 - internal ¦ Audio line-in ¦ Headphones ¦ VGA input ¦ SPDIF output ¦ RS-232 ¦ LAN ¦ Service ¦ Sensor
Remote Control
- Type
- Remote control
- Battery Included
- Yes
Audio System
- Speaker System
- 2 speakers
- Output Power / Total
- 24 Watt
- Speakers
- 2 x main channel speaker - 12 Watt
Media Player
- USB Port
- Yes
- USB Ports Qty
- 3
Display
- LCD Display Technology
- IPS
- Colour Support
- 1070000000 colours
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
- LCD Backlight Technology
- LED backlight - Edge LED
- Coating
- 2H Hard, 3% haze
- Image Contrast Ratio
- 1200:1
- Dynamic Contrast Ratio
- 40000:1
- Brightness
- 410 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Response Time
- 8 ms
- Backlight Life
- 50,000 hour(s)
- Commercial Features
- Real-Time Clock (RTC), Open Content Management Support, control panel lock, USB auto-play, FailOver, Auto-Launch
- Operation Hours / Days
- 16 / 7
- Features
- Daisy Chain, Scheduler, 10-bit support, Pixel Shifting, Signal Failover, No Signal Power Off, OPS Slot, videowall support
